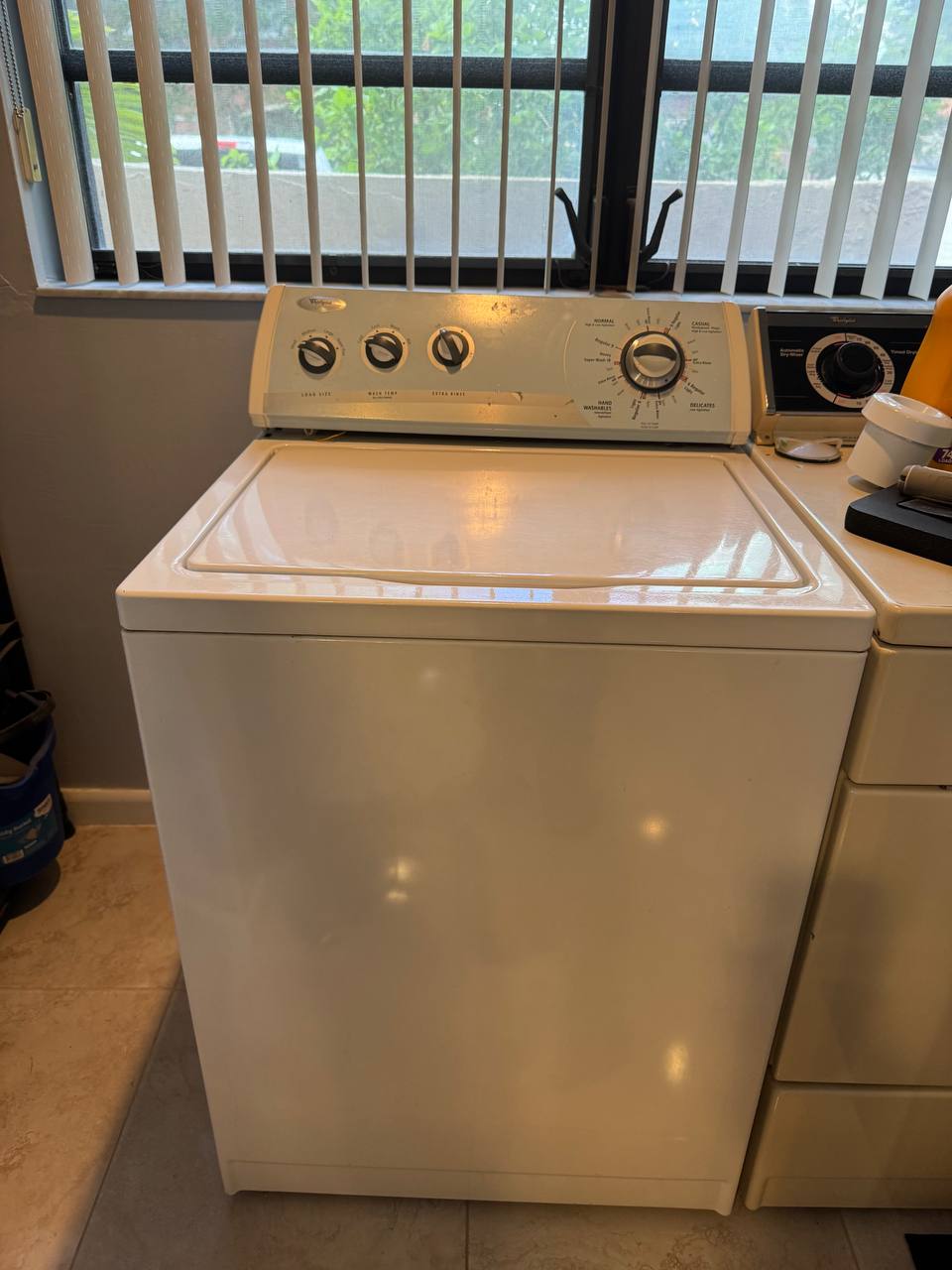

When a call comes in for a classic Whirlpool direct drive top-load washing machine, every seasoned technician smiles. Manufactured for decades before modern electronic boards took over, these direct drive units are widely considered some of the most dependable appliances ever engineered. Today's service call brought me to a home in Pembroke Pines to inspect a 2007 Whirlpool model that was finally showing its age after 19 years of flawless service.
The Complaint: Struggling with Heavy Loads
The Pembroke Pines homeowner noticed that while small T-shirt loads seemed to wash without an issue, larger loads—such as bath towels and bedsheets—were left soaking wet at the end of the cycle. The machine attempted to spin, but the wash basket simply wouldn't gain the momentum required to wring out heavy fabrics. Additionally, clothes weren't circulating well during the wash cycle.
Diagnostic Findings
Upon disassembling the agitator column and inspecting the drive assembly underneath the tub, two distinct wear-and-tear issues were identified:
Agitator Directional Dogs
The upper section of the dual-action agitator spun freely in both directions by hand. The four plastic directional teeth (agitator dogs) were completely worn down, preventing the upper auger from pulling clothes down into the wash water.
Drive Clutch Assembly
Inspecting the clutch attached to the gearcase revealed worn friction pads. While the clutch had enough grip to spin an empty basket or light loads, the weight of saturated towels caused the clutch lining to slip, failing to transfer motor torque to the spin basket drive tube.
Same-Day Action & Repair Plan
Because these direct drive machines are legendary for longevity, replacing these wearable components is far more economical than purchasing a new washer. I performed an immediate initial repair and laid out a complete service plan:
- Immediate Repair (30 Minutes): Replaced the four worn agitator dogs directly from my truck stock. This instantly restored the top auger's proper mechanical ratcheting movement so the homeowner could continue washing light loads over the weekend.
- Follow-Up Plan: Today being Saturday afternoon, our local supply warehouse was closed for the day. A original OEM Whirlpool clutch kit was reserved for pickup first thing Monday morning to complete the spin performance repair.
Technician Tip: Whirlpool direct drive washers use mechanical clutches and plastic ratchet dogs as wearable safeguards. Replacing these low-cost items every 8–10 years can keep the machine running smoothly for decades.
Restoring Peak Efficiency
With the new agitator dogs installed on the spot, the upper agitator resumed its ratcheting motion, properly driving clothes downward into the wash zone. Once the replacement clutch assembly is installed on Monday, this Pembroke Pines washing machine will be fully restored to factory performance, ready for many more years of heavy-duty laundry service.
