The Service Call: Sudden Shutdown in Coral Springs
Our dispatch team received an urgent request from a homeowner in Coral Springs whose high-efficiency Samsung washing machine had experienced a sudden, catastrophic failure mid-cycle. The customer reported a harsh, chemical burning odor permeating the laundry room, followed immediately by the washer going completely dark and unresponsive to the power button.
Initial Troubleshooting and Diagnosis
Upon arriving at the Coral Springs property, the electrical smell was immediately detectable near the appliance. When dealing with burning smells and dead units, safety is the first priority. We unplugged the unit from the 120V dedicated wall outlet and confirmed proper line voltage at the receptacle before opening the machine.
Power Supply Verification
Confirmed that the home's circuit breaker had not tripped, and line voltage to the noise filter module was stable at 122 VAC.
Cabinet & Control Access
Removed the rear lower access panel to inspect the motor drive assembly and primary control housing. A heavy concentration of burned phenolic resin and melted wire insulation was evident near the lower inverter housing.
Component Inspection

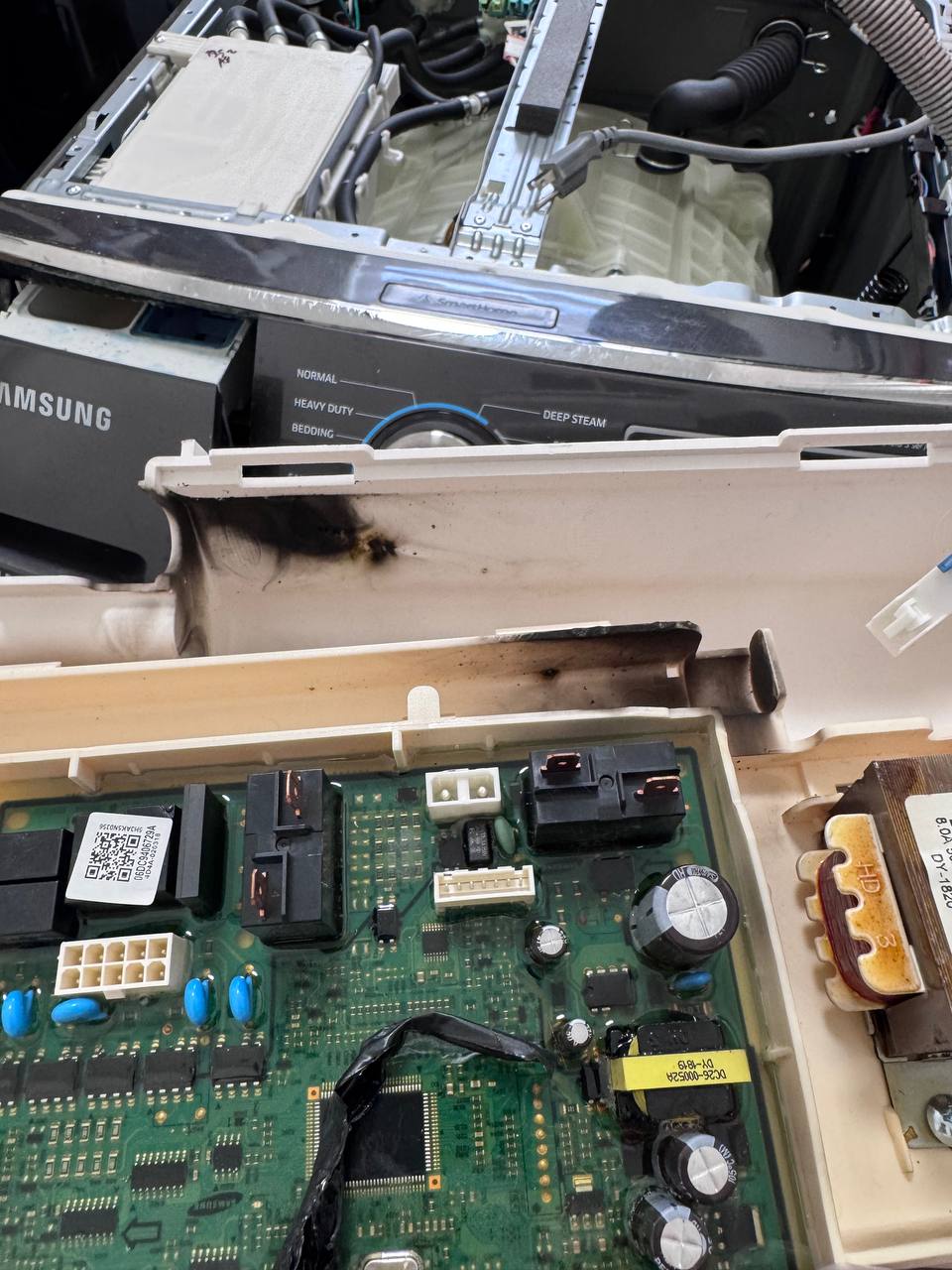

Inspected the motor power inverter board. The PCB sustained an internal thermal runaway, blowing the bridge rectifier and charring the surrounding wiring harness and multi-pin terminal blocks.
The Root Cause: Blown Inverter & Melted Wire Harness
The variable-frequency inverter board responsible for converting AC power into three-phase DC to drive the direct-drive brushless motor suffered an internal short. When the high-voltage IGBTs (insulated-gate bipolar transistors) failed, they drew excessive current, generating extreme heat before the main board could register the over-current condition.
This thermal event charred roughly six inches of the wiring harness, melting the insulation down to bare copper and fusing the connector housing directly into the board's plastic enclosure.
Technician Note: When an inverter board fails catastrophically, the chemical resin used to pot the electronics leaves an extremely stubborn, oily residue on nearby metal framing and plastic baffling inside the washer tub cavity.
The Dilemma: Why the Customer Declined the Repair
We quoted a full repair that included sourcing an OEM Samsung motor inverter assembly and rebuilding the damaged section of the main motor wiring harness. However, an honest conversation followed regarding the aftermath of electrical fires:
The Odor Factor: While we can restore full electrical and mechanical functionality, we cannot guarantee 100% elimination of the pungent, burned-plastic odor. The acrid smoke enters the tub insulation and porous plastic housing, lingering for months whenever the machine runs a warm or sanitize cycle.
Because the unit was over eight years old and the homeowner had a high sensitivity to synthetic chemical odors, they decided that replacing the washer made more financial and practical sense than investing in new electronic components.
Honest Diagnostics for Coral Springs Residents
At iFixExpress, our role is not just to replace parts—it is to provide transparent, realistic guidance. When an electrical breakdown produces severe smoke damage, homeowners deserve to know all potential drawbacks before authorizing a high-dollar repair.
