The Service Call: Zero Signs of Life

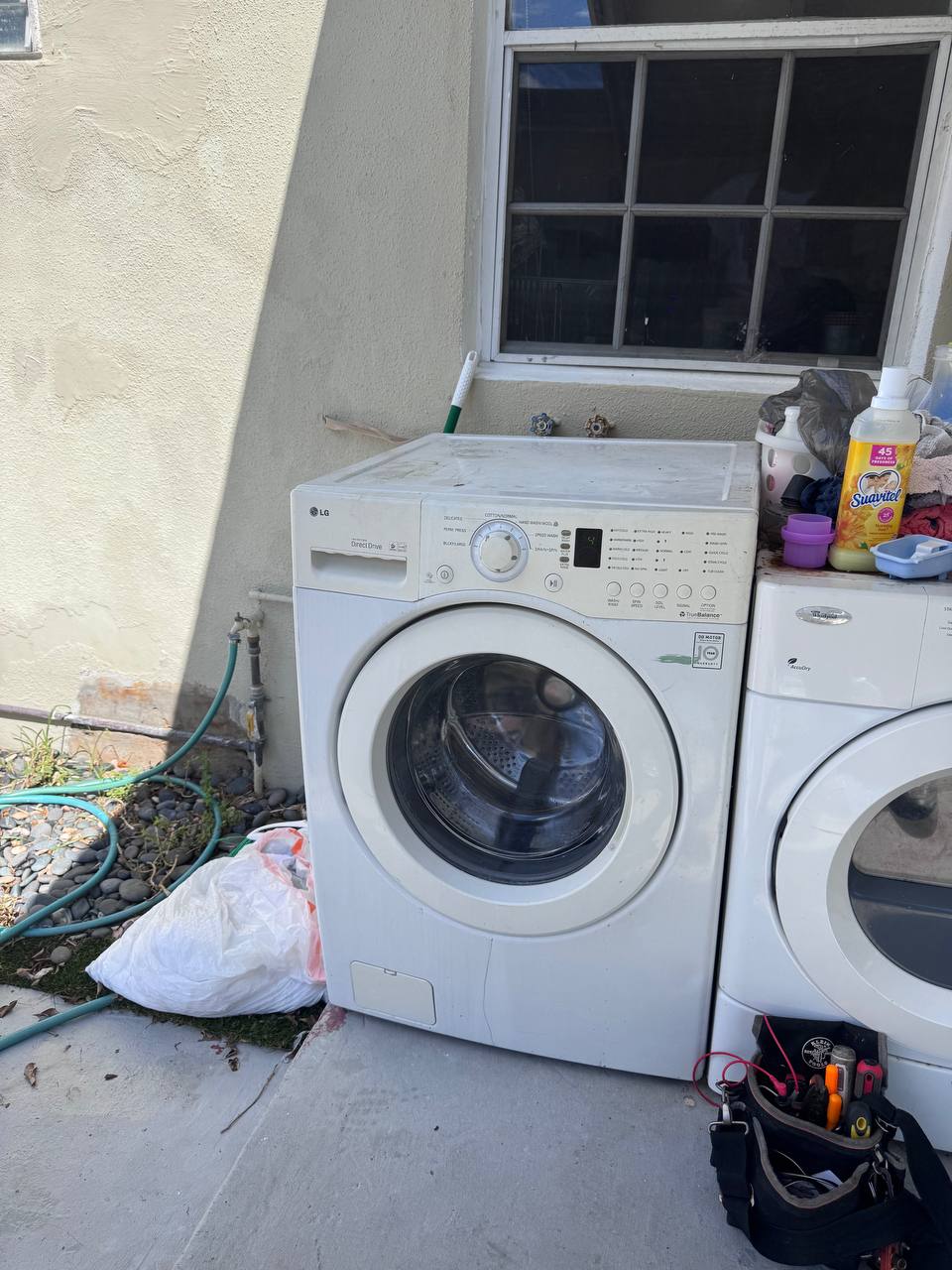

In South Florida, it is not uncommon to find laundry appliances installed on covered back patios, utility carports, or semi-enclosed breezeways. Our technician arrived at a home in Davie after the homeowner reported that their LG washing machine was completely dead. Pressing the power button produced no chimes, no LED activity, and no response whatsoever.
The Diagnosis: Tracing the Rain Path
When an electronic washer exhibits a total blackout, technicians start at the power source and work inward to the main electronic control board.
Power Verification
We verified incoming line voltage at the wall receptacle using a digital multimeter. The GFCI outlet supplied a steady 120V AC, and the heavy-duty power cord showed zero signs of physical damage or blown internal fuses.
Control Housing Inspection
Upon removing the top console shroud to access the main PCB assembly, we noticed dried mineral trails and active moisture near the rear seam. The patio overhang had a slight drip line directly above the unit during heavy afternoon downpours, channeling runoff down the washer's back panel.
Harness & Connector Analysis
The main power feed connector plugging into the LG control board displayed heavy green and white copper-oxide corrosion across several key terminal pins. This oxidation broke electrical continuity, preventing standby DC voltage from reaching the microprocessor and display interface.
Restoring Circuit Continuity
Fortunately, the silicone potting compound protecting the LG main circuit board prevented moisture from frying the core surface-mount components. The failure was isolated to the molex harness plugs and terminal pins.
Using specialized electrical contact cleaner, micro-abrasive wire terminal brushes, and dielectric treatment, our technician meticulously cleaned every oxidized pin. We checked resistance across the wiring harness to ensure zero voltage drop, reseated the connectors firmly, and secured the wire routing to prevent water wicking.
Testing and Weatherproofing Recommendations

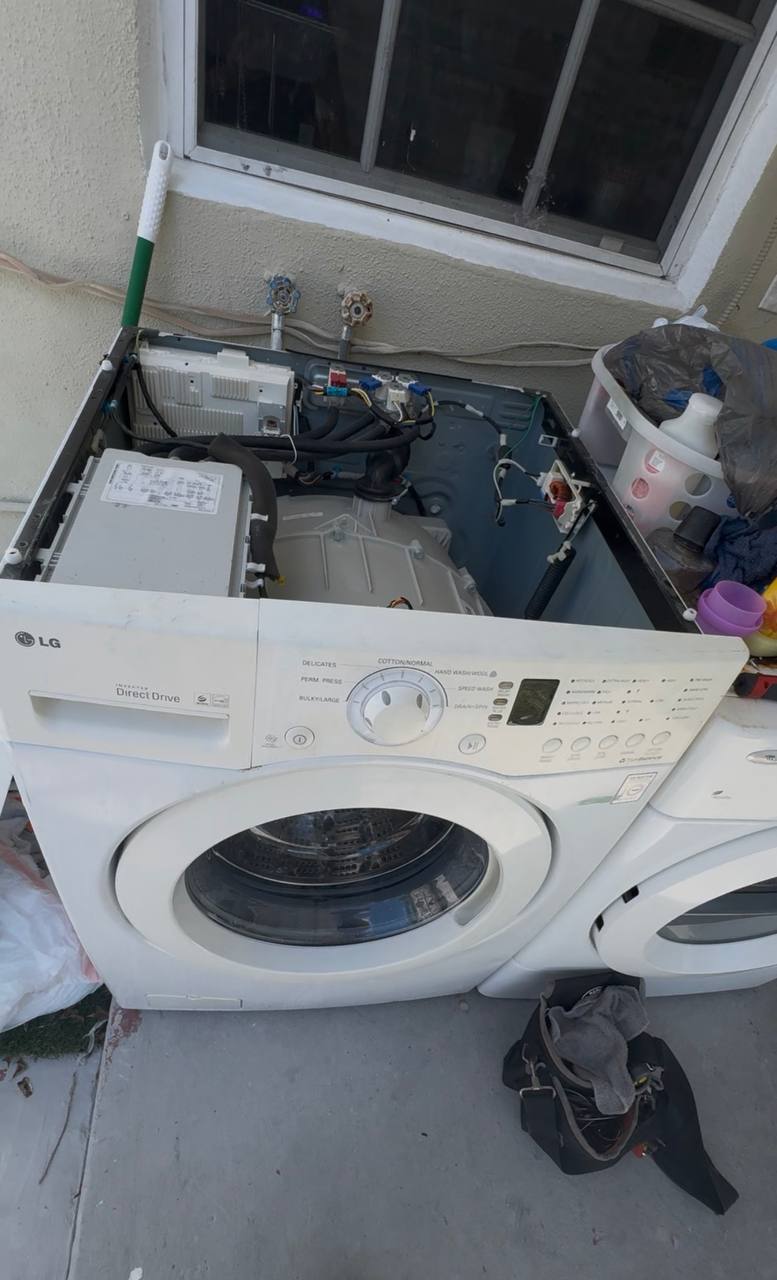

Once reassembled, we plugged the unit in and hit power. The LG console immediately lit up with its familiar chime. We ran a full quick test cycle—verifying water inlet valves, agitation, high-speed spin, and drain pump operation without a single communication error.
Technician Tip for Outdoor Washers: Standard residential washing machines are not NEMA 4X weather-rated. If your laundry appliances sit on a patio or carport in Davie, install a rigid rain deflector or durable waterproof cover to prevent roof runoff from infiltrating sensitive electronic control panels.
