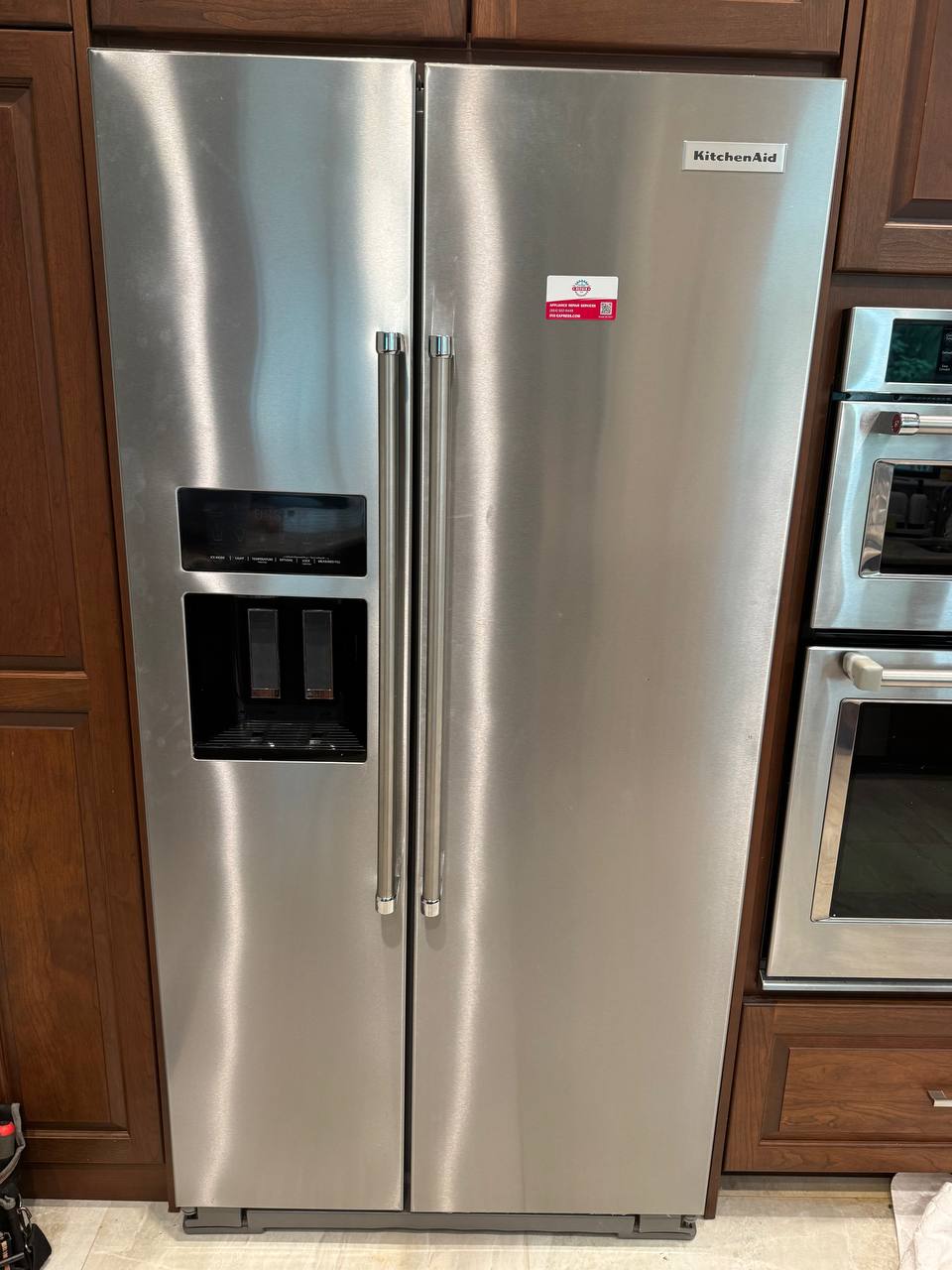

A homeowner in Plantation, FL called iFixExpress after their KitchenAid refrigerator’s door-mounted ice maker stopped producing ice altogether. The fridge and freezer compartments were cooling perfectly, and the control display showed no error codes, yet the ice maker was entirely lifeless.
The Diagnostic: The Known Whirlpool & KitchenAid Wiring Defect
This particular failure is well-documented across KitchenAid, Whirlpool, and Maytag French door refrigerators equipped with an ice maker housed in or fed through the freezer door. The wiring harness that supplies power, sensor data, and water valve signals to the ice maker runs through the lower hinge area of the door.
Over years of normal daily opening and closing, the constant bending action causes stress fractures in the low-voltage wiring. Eventually, the copper conductors snap inside the insulation or break open completely, severing power to the ice maker.
The Solution: Replacing the Door vs. Precision Harness Repair
When customers call authorized factory service centers for this problem, they are typically quoted around $1,100 for a new freezer door assembly plus additional installation labor costs. For many homeowners, spending over $1,300 on a single repair leads them to consider buying a brand-new refrigerator unnecessarily.
At iFixExpress, we offer a specialized repair technique that restores full functionality without requiring a costly door replacement:
Expose the Hinge Flex Point
We safely disconnected power and disassembled the lower hinge boot cover to access the broken electrical harness section.
Identify Fractured Wires
Using a multimeter and visual inspection, we located three severed signal wires and two partially fractured conductors at the flex point.
Splice & Extend with High-Flex Wire
Instead of simple butt connectors which fail quickly under motion, we soldered in high-strand, flexible-grade wire extensions designed to withstand continuous bending.
Insulate & Shield
Each connection was sealed with dual-wall adhesive heat shrink tubing and wrapped in protective wire loom to prevent future friction damage.
Job Completion & Massive Savings
Within one hour, we restored full electrical continuity to the door assembly. We initiated a manual test cycle on the ice maker, verified water fill activation, and confirmed the optic sensors were properly communicating with the main board.
The Plantation customer was thrilled to have their ice maker back in working order for a fraction of the price of a full door replacement. We left behind our signature iFixExpress fridge magnet so they know exactly who to call for any future appliance repairs!
