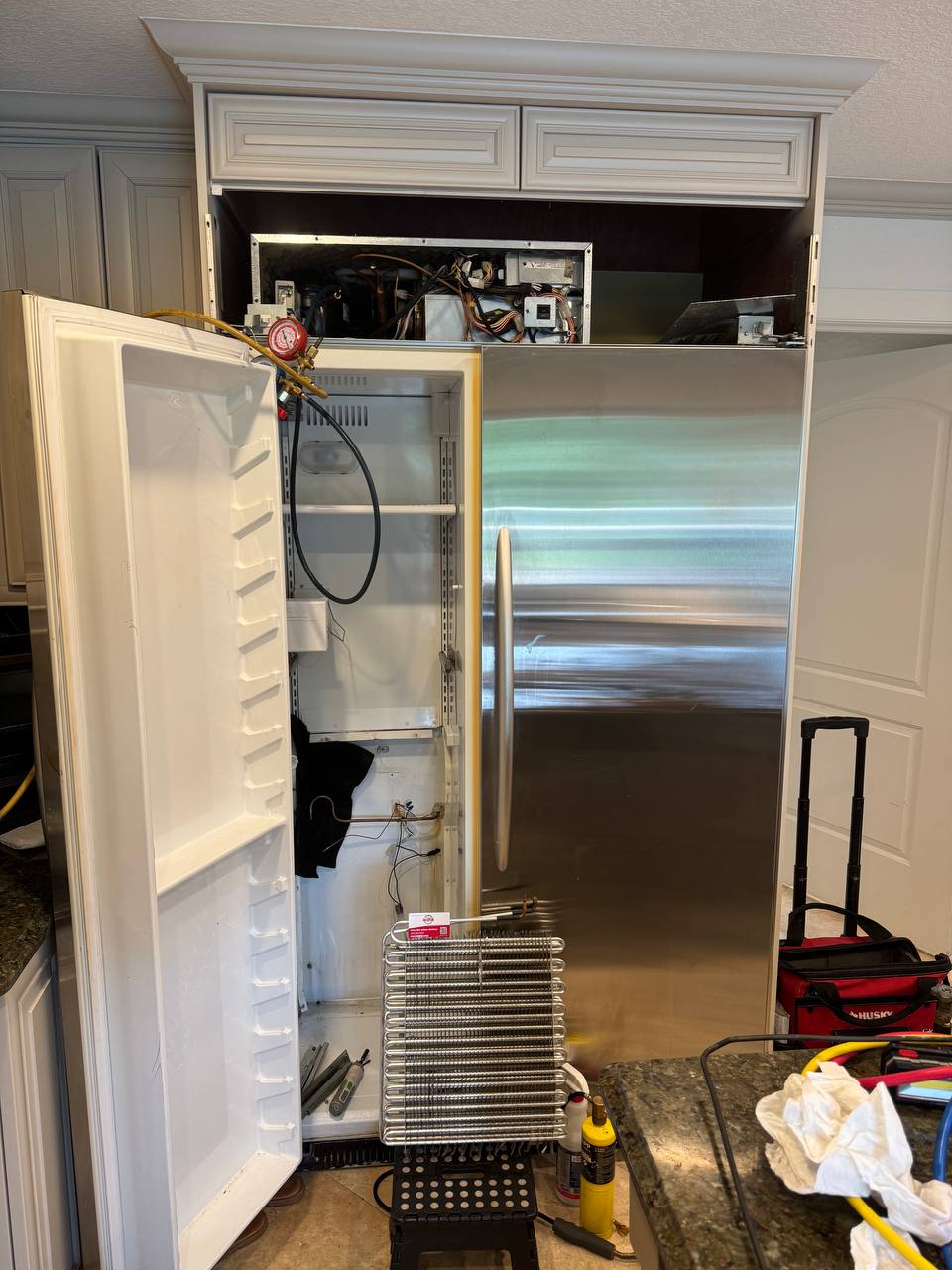

Emergency Callout: Built-in KitchenAid Warming Up in Coral Springs
A homeowner in Coral Springs reached out to iFixExpress when their premium 48-inch built-in KitchenAid refrigerator began losing cooling capacity. The freezer section was struggling to maintain sub-zero temperatures, and the fresh food compartment was rapidly climbing past safe food-storage limits. Built-in units of this scale require specialized tools and expert handling, as sealed system issues can quickly compromise thousands of dollars in groceries.
Diagnostic Inspection: Pinpointing the Sealed System Leak
Upon arriving at the Coral Springs property, our technician performed a complete diagnostic sequence on the KitchenAid sealed system. The compressor was running continuously without cycling off, yet the evaporator coils lacked the characteristic uniform frost pattern required for effective cooling.
Step-by-Step Sealed System Repair Procedure
Replacing an evaporator coil on a 48-inch built-in KitchenAid is an intensive process that requires EPA-certified handling and precise brazing technique.
1. Refrigerant Recovery & System Evacuation
Using an EPA-compliant recovery unit, we safely evacuated all remaining freon from the system. Safety and environmental standards are strictly followed during every sealed system intervention.
2. Evaporator Coil Replacement
We unbrazed the damaged evaporator assembly inside the cabinet and removed it carefully. A factory-original KitchenAid evaporator coil was fitted, and copper-to-copper joints were braze-welded using a silver alloy under a dry nitrogen purge to prevent internal oxidation and scale buildup.
3. High-Vacuum Pull & Freon Recharge
After installing a fresh liquid line filter-drier, we connected a deep vacuum pump to draw the system down below 500 microns, ensuring complete removal of moisture and non-condensable gases. Once verified leak-free, we charged the exact weight of factory-specified refrigerant into the high side.
Final Testing & Job Completion

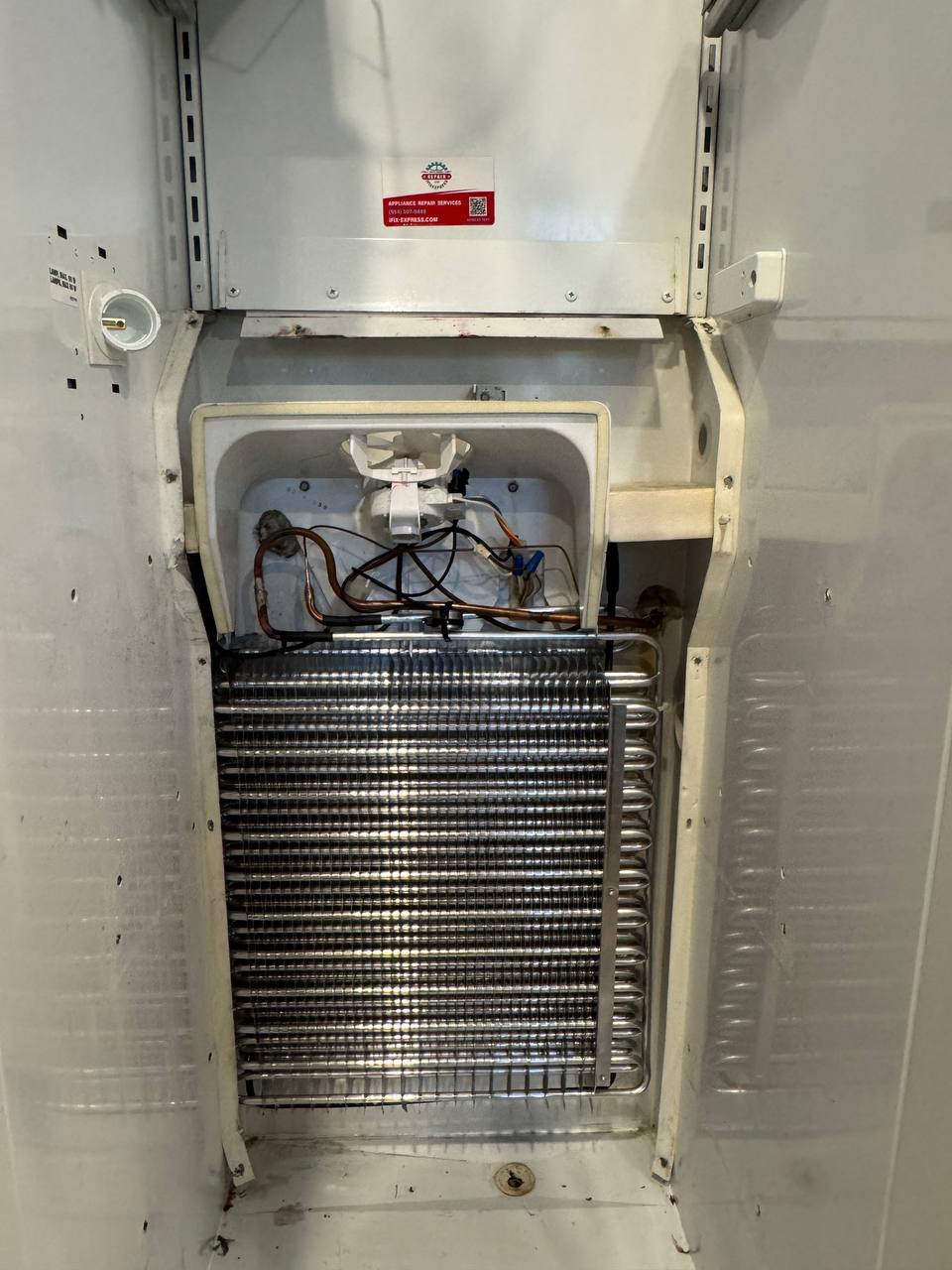

After three hours of meticulous work, the KitchenAid 48-inch unit was brought back to full operating power. Frost immediately began forming evenly across the brand-new evaporator coil, and operating pressures stabilized perfectly within factory parameters. The Coral Springs homeowner was delighted to have their high-end luxury refrigerator running quietly and efficiently once again.
