The Service Call: The Dreaded F2E1 Code in Weston

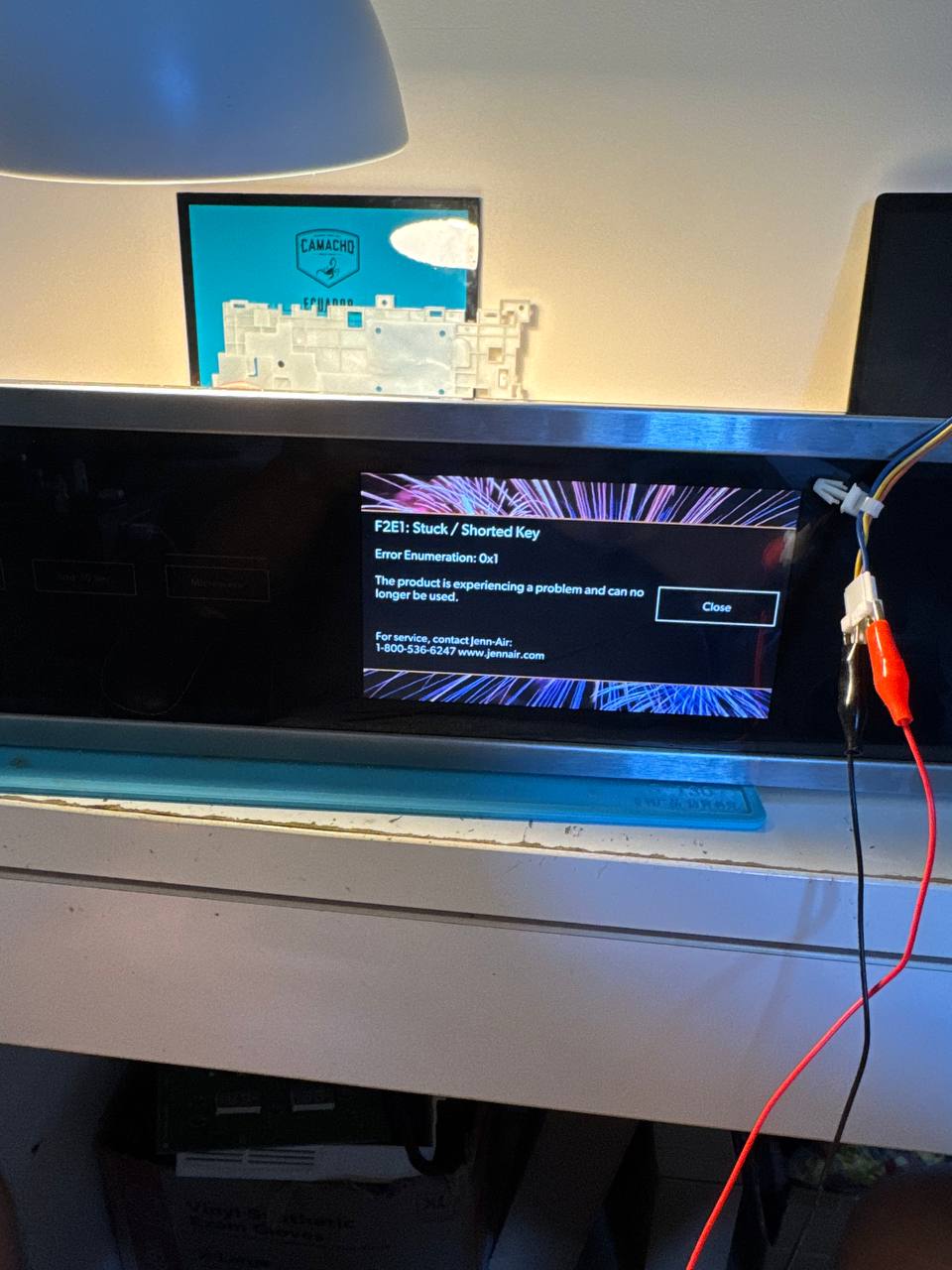

We received a call from a customer in Weston, FL whose high-end Jenn-Air built-in microwave-oven combination unit suddenly went out of service, displaying the F2E1 error code. This fault code translates specifically to a Stuck/Shorted Key within the user interface (UI) touchpad matrix.
If you own an appliance built on the Whirlpool family platform—including Jenn-Air, KitchenAid, Maytag, and Whirlpool wall ovens—this issue is well-documented. Sooner or later, thermal stress and component fatigue cause short circuits in the membrane matrix or key controller IC. Historically, the standard industry solution was brutal on the homeowner's wallet: replacing the entire UI console panel assembly, which routinely costs $900 or more for the part alone.
Refusing the $900 Replacement Standard
When I evaluated the unit, the housing and display screen were physically pristine, but the shorted key lines locked up the entire electronic control module. Facing a total repair quote approaching $1,200 (parts and labor) for a full assembly swap, the customer was understandably frustrated.
With over 35 years of experience in micro-soldering, circuit diagnostics, and board-level repair, I knew there had to be a better solution. I proposed a bench-repair approach: I would remove the UI panel assembly, take it back to my workshop, trace out the fault at the component level, and re-solder the damaged conductive traces or surface-mount devices. The homeowner agreed to let us attempt this component repair.
Bench Diagnosis and Component-Level Micro-Soldering
I dedicated my Sunday off to dissecting the inner circuitry of this Jenn-Air UI panel. Here is the step-by-step diagnostic and bench repair procedure performed:
Teardown & Isolation
Carefully separated the glass capacitive touch interface from the rear control board using anti-static precision tools to access the surface-mount component matrix.
Trace Continuity & Resistance Testing
Utilized a digital multimeter to measure resistance across key matrix trace lines, pinpointing the specific line generating the shorted key voltage reading.
Micro-Soldering & Component Restoration
Under a stereo microscope, removed microscopic shorts, re-seated compromised surface-mount devices (SMDs), and re-soldered degraded circuit traces using fine ESD-safe equipment.
Bench Simulation
Applied regulated bench power to verify signal line integrity and confirm the short condition cleared completely across all touch matrix points.
Reinstallation & Verified Success

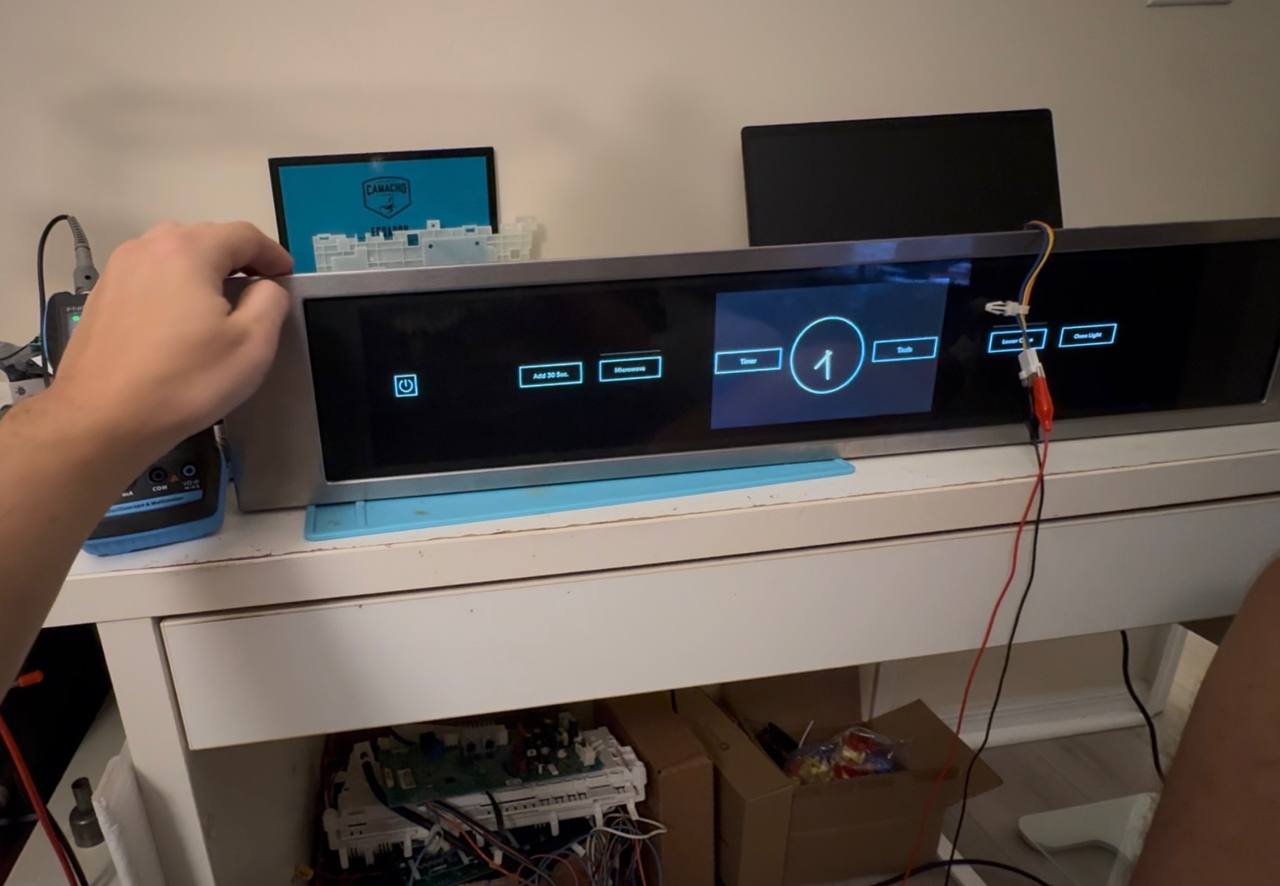

The following morning, I returned to the client's home in Weston to reinstall the repaired control console into the wall oven housing. Upon restoring circuit power, the display booted cleanly without any error prompts. Every single touch key, temperature dial input, and microwave function responded instantly.
Instead of forcing the customer to spend nearly $1,000 on a factory assembly kit, our component-level board repair restored their built-in appliance to 100% functionality at a fraction of the cost. More importantly, iFixExpress can now offer this specialized board repair service to homeowners across Broward County facing identical issues.
