The Call: Unresponsive GE Dishwasher in Pembroke Pines

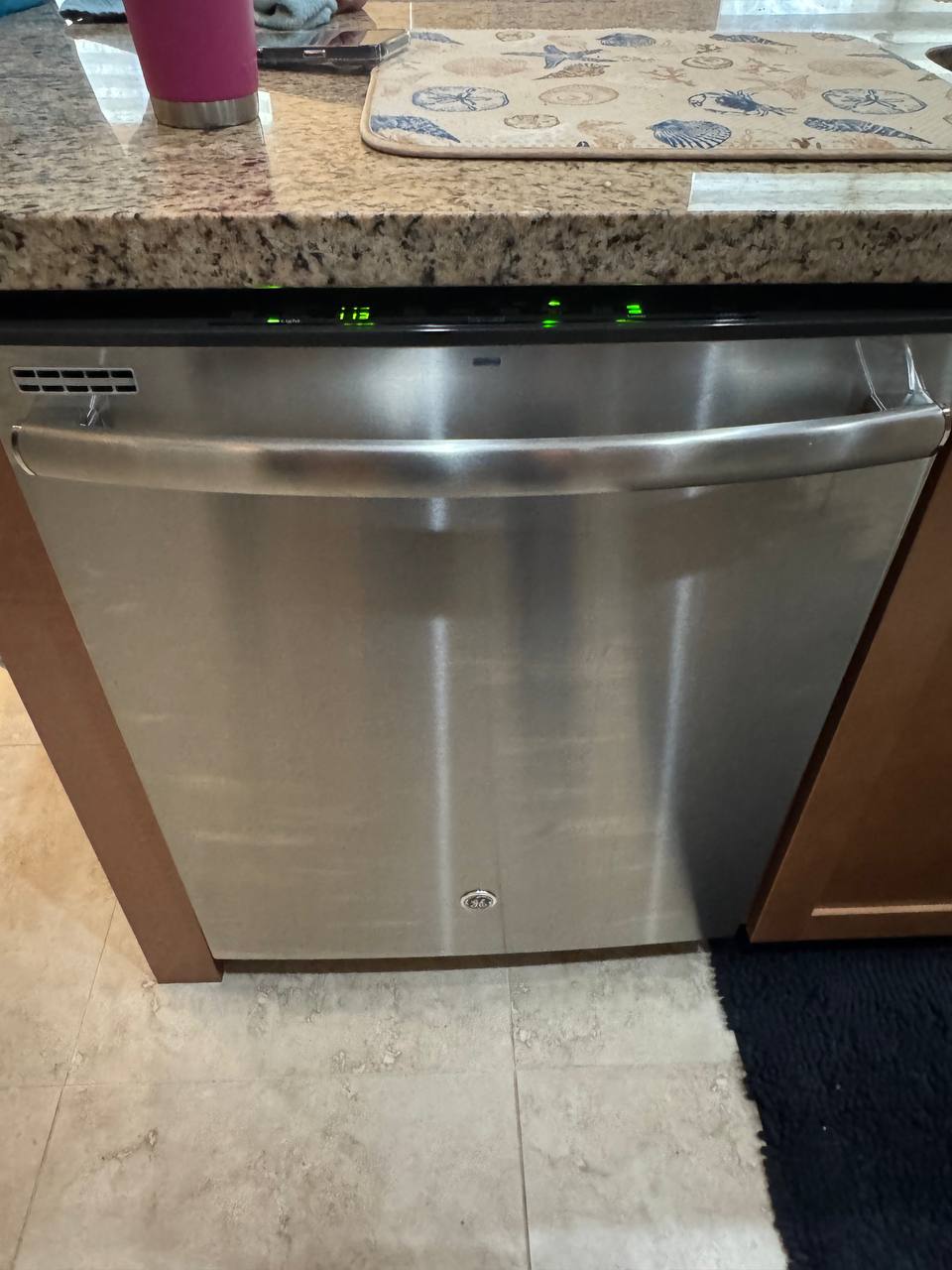

A homeowner in Pembroke Pines called iFixExpress after pressing start on their GE dishwasher, only to find the unit completely unresponsive. There were no lights on the top console, no chime, and no sign of electrical life. Unsure if the breaker had tripped or the dishwasher had suffered a complete electrical failure, they requested an urgent technician visit.
Understanding the Infamous GE UI Panel Glitch
As experienced Broward County appliance technicians, we know that modern GE dishwashers have a well-documented micro-controller glitch within the User Interface (UI) control board. When this lockup occurs, the UI board loses communication with the main power board located beneath the machine. The unit appears entirely dead, leading many homeowners—and less experienced technicians—to assume the costly UI panel or main control board needs immediate replacement.
However, roughly 90% of these cases can be resolved through technical diagnostics and a manual logic reset. Only about 10% actually require ordering an expensive new UI panel assembly.
Step-by-Step Diagnostic & Repair Process
Voltage & Circuit Verification
We began by testing incoming line voltage behind the lower toe-kick plate using a digital multimeter. We confirmed that a steady 120 volts was reaching the main control board, ruling out a tripped breaker or dead wall switch.
Main Board LED Diagnostic
Next, we inspected the diagnostic status LED on the main control circuit board. The blinking pulse code confirmed a communication hold-state between the main board and the door console UI module.
Logic Loop Clearing & Reset
Instead of immediately quoting a replacement UI board, we isolated the appliance power and performed a forced logic reset across the UI harness pins. This discharged the frozen memory state on the internal microprocessor.
Power Restoration & Calibration
Upon re-engaging power, the control display instantly illuminated with a normal chime. We ran a 2-minute diagnostic self-test cycle to verify that all button inputs, heater signals, and drain pump signals were fully responsive.
Fast Service & Real Savings
The entire service took just 20 minutes from arrival to final testing. The customer was thrilled that they did not have to wait days for expensive replacement parts to arrive or pay for unnecessary control boards. Honest diagnostics and specialized system knowledge saved them substantial money and got their kitchen back to normal instantly.
