The Service Call: No Water and an H2O Error Code

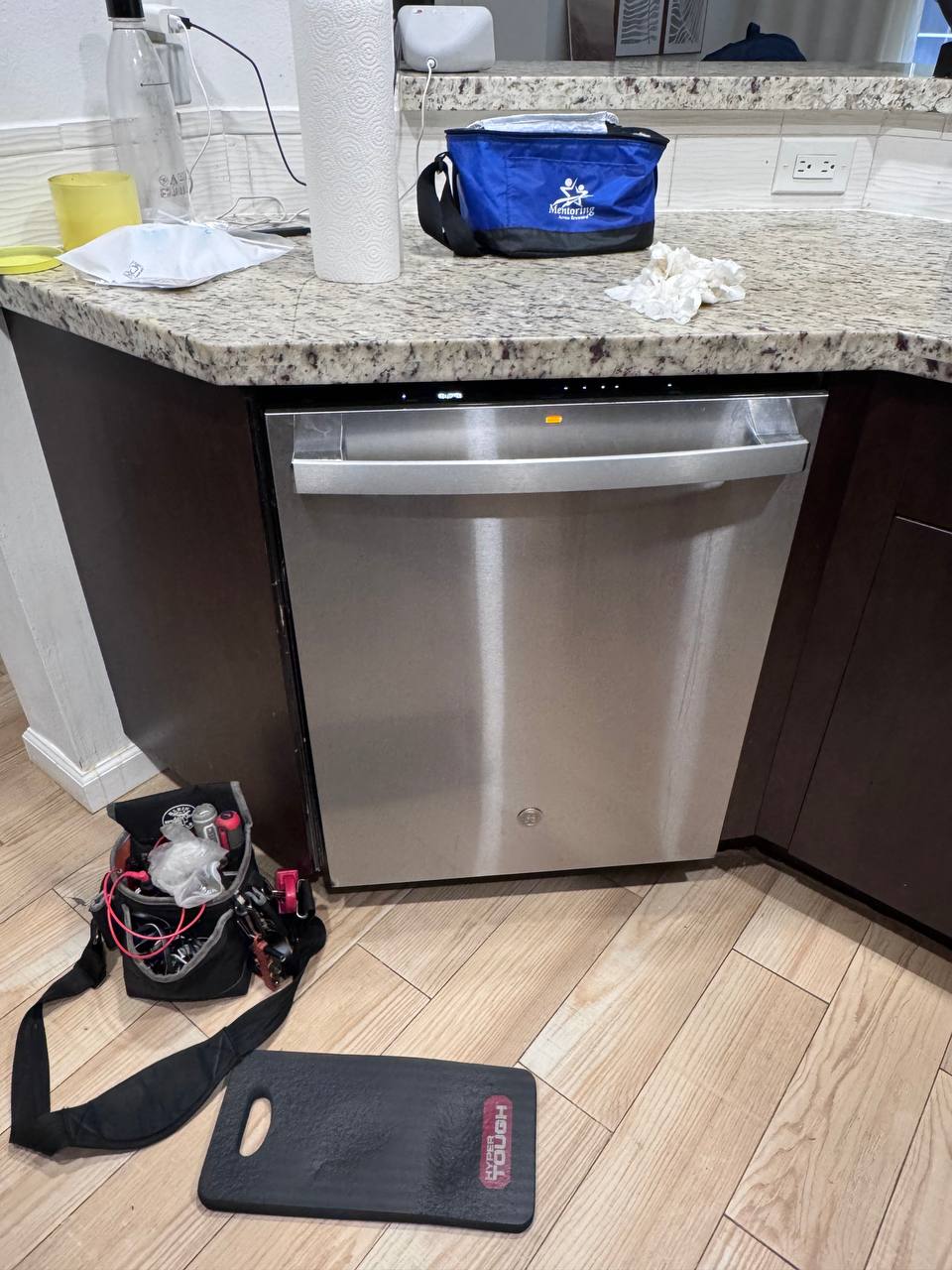

A homeowner in Davie reached out to iFixExpress when their late-model GE dishwasher abruptly halted mid-cycle. The digital console began flashing the H2O fault code, and the unit would beep before draining dry and refusing to run. Even after cycling the breaker, restarting the cycle yielded the same result: the unit would initiate a drain sequence, pause to fill, hum briefly, and then throw the H2O code without a drop of water entering the stainless steel tub.
Understanding the GE H2O Error
On modern electronic GE dishwashers, the H2O code is an explicit fill-time error. When a cycle begins, the electronic control board energizes the water inlet valve for a pre-programmed period. If the internal pressure sensor or flood switch does not detect the minimum required water volume within approximately 60 to 90 seconds, the board assumes water supply failure, halts heating and wash cycles to protect the circulation pump, and alerts the user with H2O.
Tech Tip: Always verify that the under-sink hot water shut-off valve is fully open before dismantling any dishwasher components. A partially closed shut-off can trigger an H2O error due to restricted flow rate.
Diagnostic Procedure
Water Supply & Line Pressure Verification
We verified the dedicated shut-off under the sink was fully open and tested line pressure through the braided supply line. Water volume and pressure were strong, eliminating municipal or plumbing restrictions.
Accessing Lower Service Panel
Power was isolated at the main breaker panel. We removed the lower toe-kick and acoustic insulation strip to access the water valve assembly mounted directly behind the lower-left frame.
Electrical Testing of the Inlet Valve
We disconnected the wiring harness to the inlet solenoid and used a digital multimeter to measure coil resistance. A normal GE inlet valve solenoid typically reads between 800 and 1,400 ohms. Our reading showed an open circuit (infinite resistance / OL), indicating the solenoid coil was burnt out and completely unable to magnetically actuate the internal diaphragm.
The Repair: Replacing the Inlet Water Valve
With diagnosis confirmed, the repair was straightforward:
- Disconnected the incoming 3/8-inch brass compression fitting and drained residual water into a service tray.
- Removed the secondary fill hose clamp connected to the tub's side air-gap port.
- Unbolted the failed OEM valve bracket from the dishwasher frame.
- Installed a brand-new genuine OEM GE water inlet valve, torquing the compression elbow securely to prevent micro-leaks.
- Reconnected the low-voltage control harness and carefully inspected all seals.
Verification and Results
We restored power and water, then initiated a standard Normal Wash cycle. The new valve energized quietly, filling the tub to the correct operating depth within 40 seconds. The circulation pump engaged cleanly, the spray arms built full pressure, and the persistent H2O code was permanently cleared. The entire visit from arrival to final cleanup took just 45 minutes.
