When preparing dinner turns into an accidental flash-fry, your cooktop needs immediate attention. We received a service call from a homeowner in Coral Springs whose go-to front radiant burner on their Frigidaire electric range refused to regulate temperature. Even on the lowest simmer setting, the heating element glowed bright red and scorched everything in the pan.
The Initial Assessment
The client explained that this particular burner was the family workhorse used daily. Over the past week, dialing the knob from 'Low' to '6' produced the exact same blisteringly high output. Temperature control had vanished entirely.
On an electric range, this symptom points straight to the surface element control switch—often called the infinite switch or power regulator. Rather than providing continuous resistance changes, an infinite switch cycles power on and off in pulses using an internal bimetal heater. If the mechanical contacts weld shut from electrical arcing over time, 240 volts flow through the burner continuously whenever the knob is turned past the 'Off' position.
Step-by-Step Diagnosis & Repair
Safety Isolation & Console Access
Before touching any electrical components, we disconnected power at the home's dedicated 50-amp double-pole breaker panel. After confirming zero voltage at the terminal block, we removed the rear control console panel to access the switch assembly.
Multimeter Testing
We isolated the wiring harness for the front-right burner switch. Using a digital multimeter, we tested the L1-H1 and L2-H2 terminals. Even when set to the lowest heat position, the meter registered direct continuity across the internal contacts without cycling, confirming that the internal contact leaf had fused permanently closed.
OEM Regulator Installation

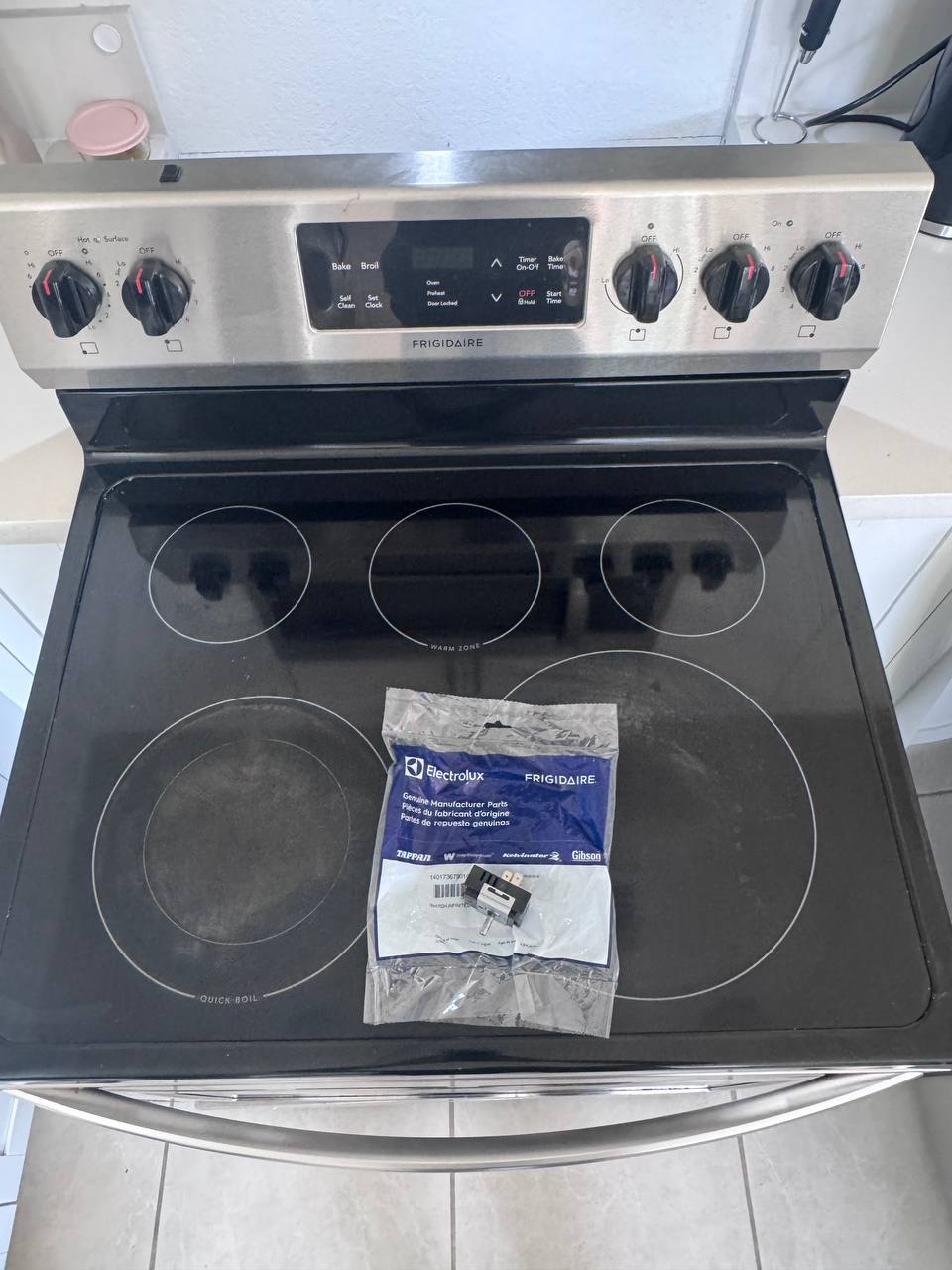

We unmounted the defective regulator and replaced it with an exact OEM Frigidaire infinite switch. Each terminal spade was checked for heat fatigue, cleaned, and seated firmly onto the new switch terminals according to the factory schematic.
Testing & Verification
With the console secured, we restored circuit power and placed a flat-bottom test skillet on the surface. We cycled the burner through simmer, medium (5), and maximum (High). The switch modulated power accurately, cycling the glow on and off at lower settings while holding a steady simmer.
Back to Perfect Cooking Control
Because our service van carries authentic Frigidaire replacement switches, the entire diagnosis and component swap took just 30 minutes from arrival to sign-off. The homeowner in Coral Springs was relieved to regain full simmer-to-boil precision on their favorite burner without having to replace the entire range.
