The Call: A Non-Functioning Dispenser in Hollywood
A homeowner in Hollywood, Florida, contacted iFixExpress when their Frigidaire refrigerator's door dispenser completely stopped responding. Ice and water were no longer dispensing, and the control panel on the door was entirely dark. Upon arrival, our technician performed a quick diagnostic check and discovered physical damage to the wire harness that routes power and signals through the freezer door hinge to the dispenser interface.

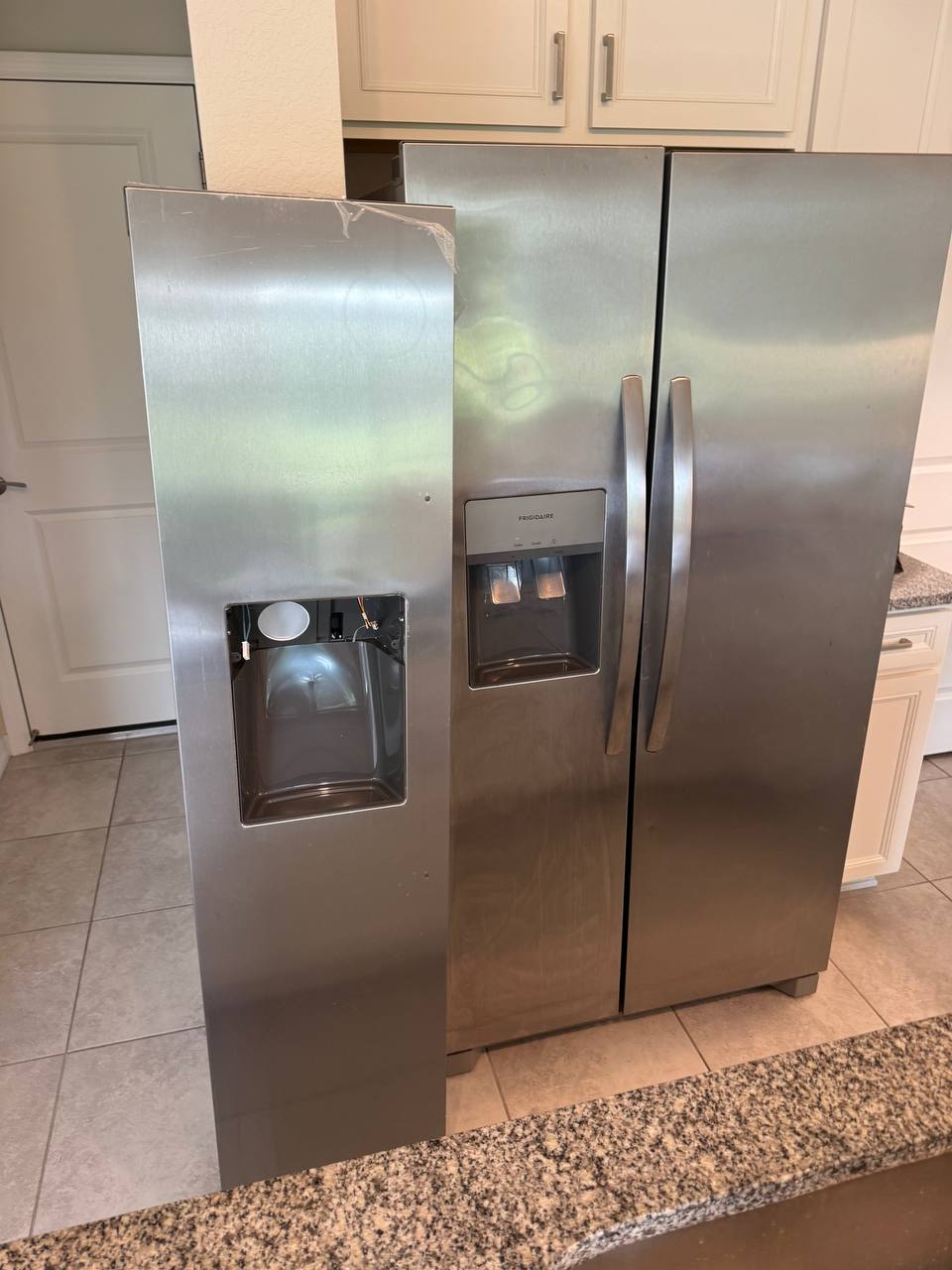

Because modern Frigidaire refrigerator doors feature wire harnesses that are molded directly into the polyurethane foam insulation for structural integrity and energy efficiency, repairing a severed or heavily damaged harness inside the door is not feasible. The correct, manufacturer-approved solution is a complete freezer door assembly replacement.
The Step-by-Step Repair Process
With the replacement OEM Frigidaire freezer door ready, our technician completed the swap efficiently in just 45 minutes. Here is how the repair was executed:
Power Down & Safety Prep
The refrigerator was unplugged from the wall outlet, and the water supply line feeding the door dispenser was shut off to prevent any electrical hazards or water leaks during the swap.
Disconnecting the Damaged Harness
We removed the top hinge cover of the freezer door to expose the main wire harness connector and the water line quick-connect. The damaged wiring harness was carefully unplugged from the cabinet-side receiver.
Removing the Old Door
The top hinge bracket was unscrewed and removed. The technician carefully lifted the damaged freezer door off the bottom hinge pin, ensuring the water line slid out smoothly without crimping.
Component Transfer & New Door Installation
We transferred the door handle, magnetic gaskets, and internal door bins over to the brand-new OEM Frigidaire freezer door. The new door was then mounted onto the bottom hinge pin, and the new, intact wire harness was routed through the top hinge.
Final Connections & Testing
The top hinge was secured, the water line reconnected, and the new wire harness plugged in. After restoring power and water, we thoroughly tested the dispenser interface, ice chute, and water valve to ensure flawless operation.
Preventing Future Wire Harness Damage
Wire harness damage near door hinges is often caused by physical impact, over-extending the door, or objects getting caught in the hinge area. To prevent this, always ensure the door stop brackets are tight and avoid placing heavy stress on the freezer door when it is fully open.
Thanks to our technician's preparation and expertise, this complex-sounding repair was completed in under an hour, leaving the Hollywood homeowner with a fully functional, beautiful Frigidaire refrigerator once again.
