SolutionThermal fuse replaced & interior deep vacuumed
Repair Time45 minutes
Service Call: No Heat & Maintenance Request in Plantation
A homeowner in Plantation, FL, reached out to iFixExpress after noticing their clothes dryer was tumbling normally but blowing strictly cold air. In addition to fixing the heating issue, the customer requested a full internal cleaning and vacuuming of the unit to reduce fire risks and keep the appliance operating efficiently.
Diagnostic & Inspection Process
When a dryer runs but produces zero heat, the issue typically stems from a blown thermal fuse, a failed heating element, or a faulty high-limit thermostat. Dense lint accumulation inside the cabinet often causes overheating, triggering safety components to trip.
1
Disconnect power and remove front access panels to reach internal electrical components and drum mechanism.
2
Test the thermal fuse for continuity using a digital multimeter. Result: Open circuit (blown fuse).
3
Inspect heating element and cycling thermostats; all secondary components tested within normal resistance parameters.
4">Inspect cabinet chassis, blower wheel, and interior exhaust housing for dust and lint obstruction.
Executing the Repair & Deep Cleaning
The primary reason thermal fuses blow is restricted airflow creating excess internal heat. Before installing the replacement part, thorough cleaning was essential to prevent a repeat failure.
Step-by-Step Resolution:

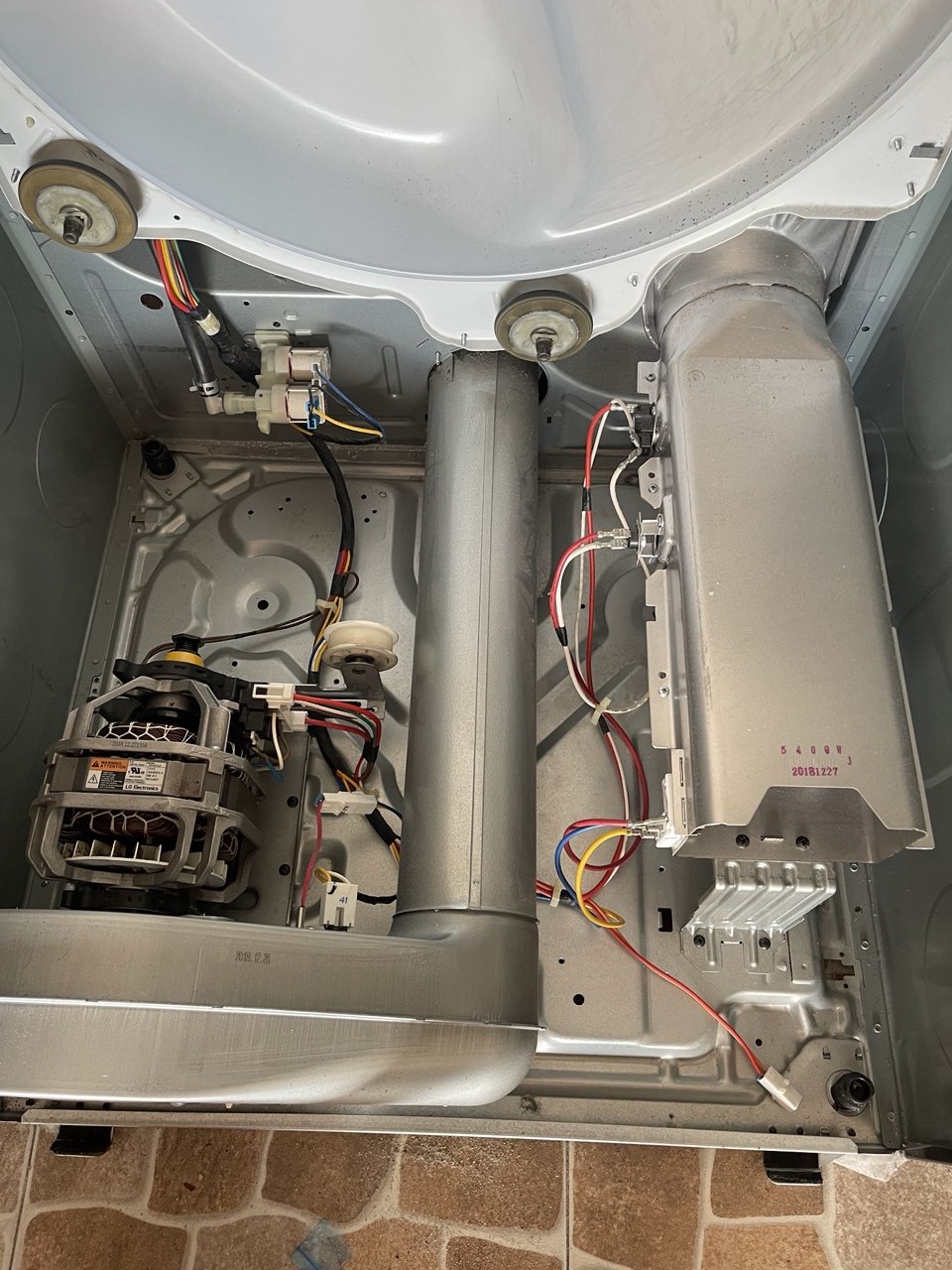

Interior Vacuuming: Used high-power vacuum equipment to clean out all accumulated lint from around the blower housing, motor cavity, drum seal area, and bottom pan, restoring the interior to pristine condition.
Fuse Replacement: Installed an OEM-certified replacement thermal fuse onto the exhaust duct housing.
System Reassembly & Reconnect: Secured cabinet housing, panels, and internal wiring harnesses.
Airflow & Function Test: Powered the unit back on and initiated a timed dry cycle. Checked heat output at exhaust and verified strong, steady airflow out of the external exhaust vent port.
45 Mins
Total Restoration & Service Time
Technician Insight: A blown thermal fuse is a protective safety feature. Simply swapping the fuse without vacuuming lint buildup or checking exhaust flow often leads to the new fuse blowing within days. Periodic internal maintenance extends component life and maintains peak dryer performance.
Frequently Asked Questions
The most common culprit is a blown thermal fuse, which cuts off power to the heating circuit when temperatures inside the cabinet get too high, usually due to lint buildup or blocked vents.
A standard thermal fuse replacement along with a full interior cabinet vacuuming typically takes under an hour to complete.
It is recommended to have the interior cabinet and blower housing professionally cleaned every 1 to 2 years, depending on laundry frequency.
On many electric dryers, the drum will still tumble but the dryer will produce no heat. On some models, a blown thermal fuse will prevent the dryer from turning on entirely.
